LLMs are taking the Machine Learning spotlight these days but Computer Vision applications are still going strong. YOLO continues to be the state of the art model for object detection and Meta recently released the Segment Anything Model (SAM) that can generalize to multiple zero-shot learning tasks. We cover:
YOLO: You Only Look Once
The Segment Anything Model: The GPT-3 of Computer Vision?
Learn more about YOLO and SAM with tutorials, Github repositories and Youtube videos
YOLO: You Only Look Once
YOLO really changed the game when it comes to object detection! Back in the day, we had to use the sliding window method at different scales to apply an image classifier. The method was imprecise and very slow and therefore it was not really possible to run it in real-time on videos for example. YOLO (You Only Look Once) changed everything by predicting everything at once making it possible to run it in real-time while being small enough to fit in a mobile application.
The first YOLO model came out in 2015 and YOLO v8 came out in early 2023. There have been many improvements over the years but there are common features that persist. The idea is to segment the image into a grid and predict the existence of a bounding box for each of the classes we are considering. When it comes to labeling the data, a grid cell is labeled to contain an object only if the center of the bounding box is in it. If the grid cell contains a center, the "objectness" is labeled 1 and 0 otherwise. The model will try to predict the probability that a grid cell contains a center. If it contains a center or multiple ones, each class related to those centers will be labeled with 1s. If we have 2 classes (e.g. cat and dog), the label vector will be [1, 1, 0] if the grid cell contains a cat, [1, 1, 1] if the grid cell contains a cat and a dog, and [0, 0, 0] if it contains nothing. Added to that, the label vector holds as well the (x, y) coordinates of the bounding box centers for each class and their sizes (w, h): [x, y, w, h, x', y', w', h', 1, 1, 0]. The full target to predict is the set of label vectors for each grid cell. To add to the complexity, the full target includes multiple bounding box priors expanding the target dimensionality. Those priors are anchor boxes that guide the model with a set of typical box shapes seen in the data. For example V2, uses 5 different priors with a grid of 13 x 13, making the target a tensor of 13 x 13 x 11 x 5 = 9295 parameters.

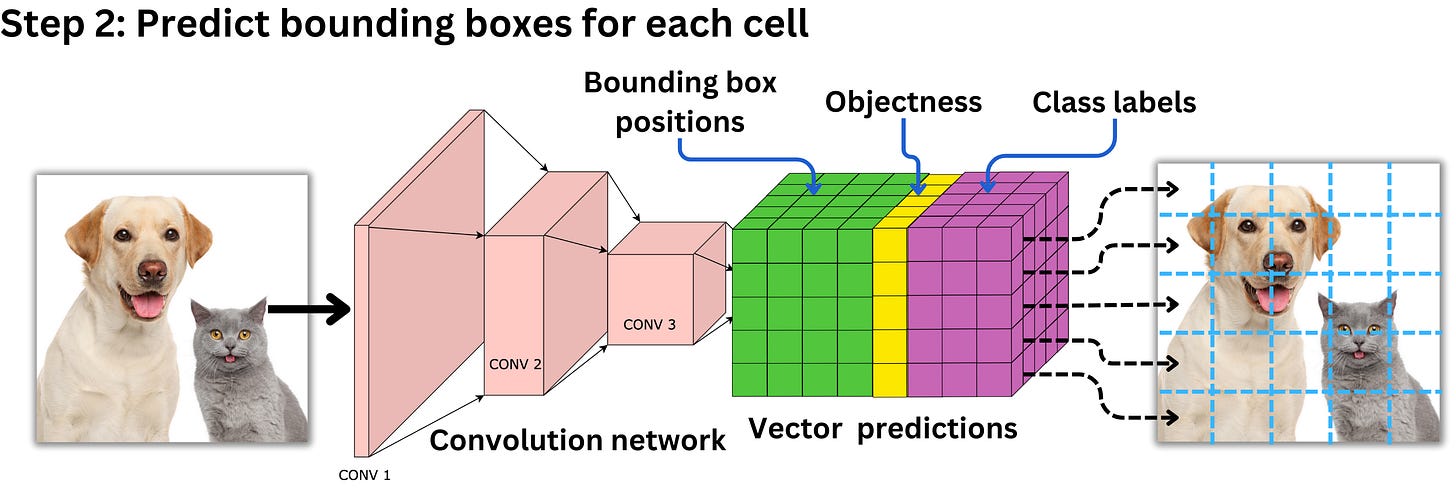

The model is a simple convolutional network with the output of the last convolution layer having the dimensionality of the target to predict. This means that for each cell, the model will predict if there is an object (the center of a bounding box), the probability for each of the classes and the dimensions and positions of the resulting bounding boxes, this for each of the priors.
Because the model will likely predict multiple bounding boxes for the same object, it is necessary to select the best ones. The idea is to choose the box with the highest confidence score, measure its intersection area over union area (IOU) with all the other overlapping boxes of the same class, and remove all that are above a certain threshold. This is called non-maximum suppression. This ensures that boxes with high overlaps are merged into one.
You can find the paper for YOLO v1 here and the documentation for YOLO v8 here.
The Segment Anything Model: The GPT-3 of Computer Vision?
We have foundation models for NLP like GPT-3 that can generalize on zero and few shot learning tasks, but what about computer vision models? For years, CV and NLP have been going back and forth on algorithmic revolutions that leap the field forward. Recently, NLP has seen more revolutions than ever before with Transformer models. The Segment Anything Model (SAM) might just be one of those for CV!
